Product Overview

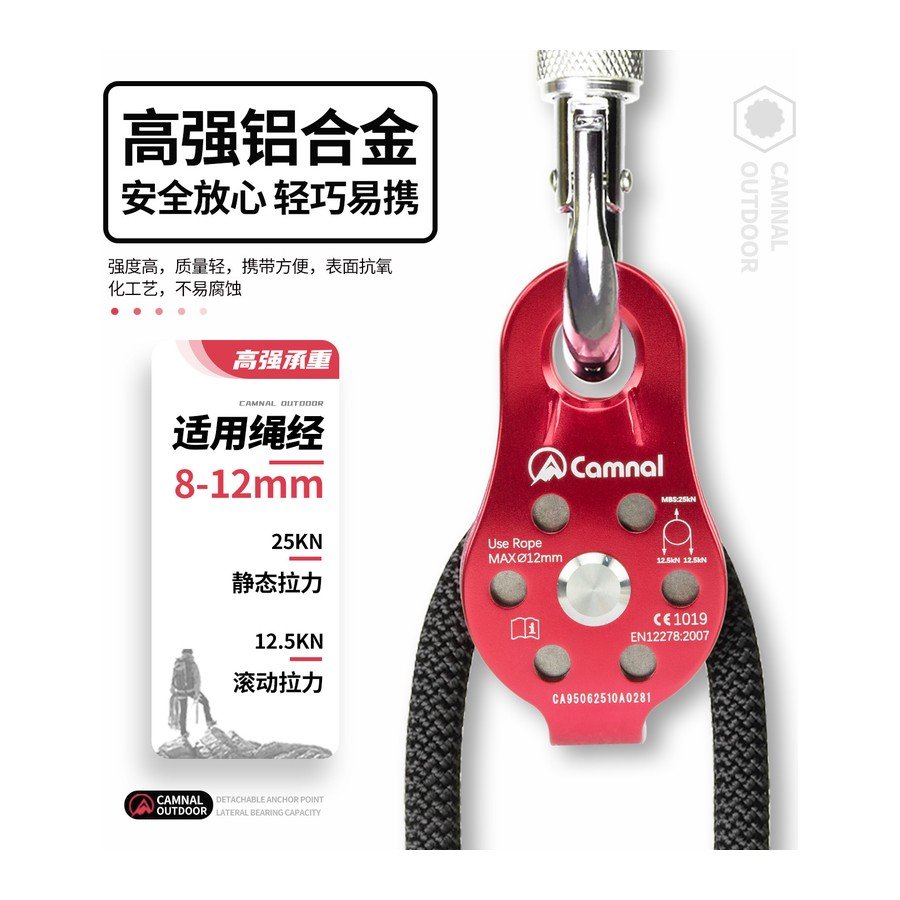

Aluminium Pulley Block, 25kN — Red (APB-2026). Compact 6061 aluminium pulley blocks with integrated swivel and stainless bearings. Built for rope access, caving, rescue hauling and high-angle work where a light, compact sheave is required.
Key Features
- Red anodised finish gives clear load-side identification on multi-line systems
- 25 kN working load in a 0.62 kg body suits portable rescue kits
- Forged aluminium plates resist deformation under side loading
Typical Applications
Off-road recovery, vehicle towing, winch operations, rigging and lifting, fleet maintenance and OEM programmes.
Specifications
| Model No. | APB-2026 |
|---|---|
| Material | 6061-T6 forged aluminium, stainless bearing |
| Working Load | 25 kN (5,600 lbs) |
| Sheave Diameter | 44 mm |
| Rope Capacity | 12 mm |
| Side Plate Width | 81 mm |
| Weight | 0.62 kg |
| Certification | CE / EN 12278 |

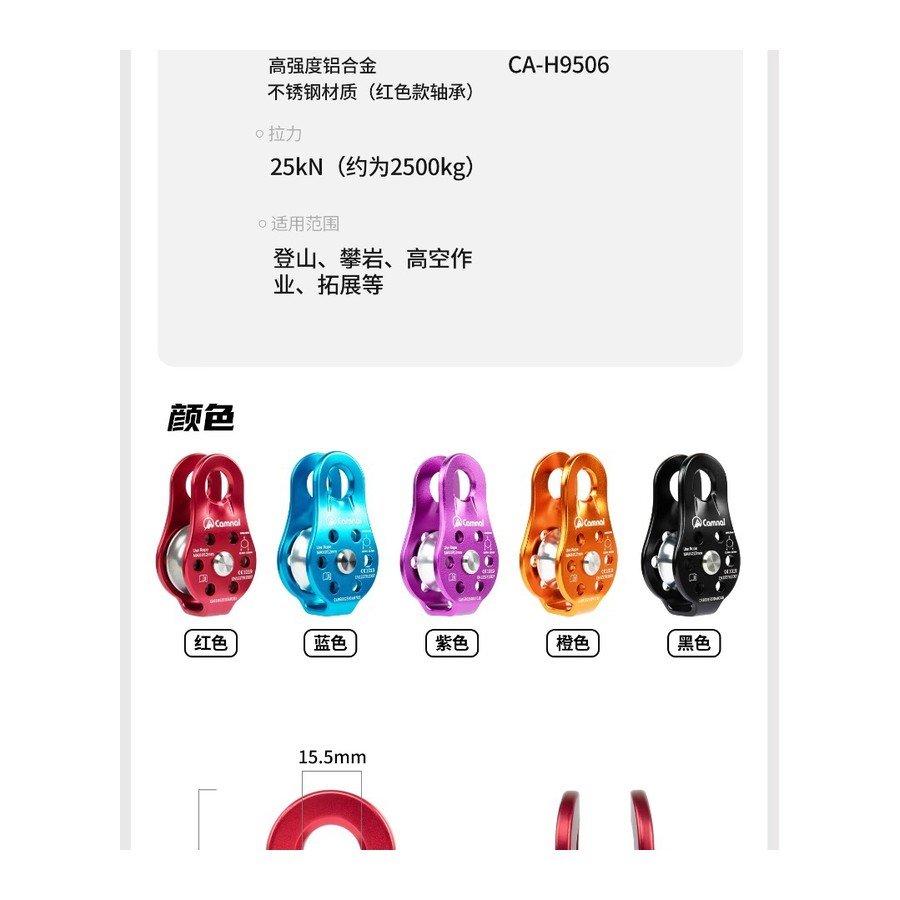

| Colour | Anodised Red |
| Certification | ISO 9001 certified manufacturing |
Specifications, materials, dimensions, applicable standards, packaging and customization options should be confirmed for the selected model and order.
