Product Overview
The DURVOR chain sling range uses Grade 80 alloy steel Grade 80 alloy chain matched with Grade 80 hooks and a Grade 80 master link. Each leg is cut to the customer-specified length, so the same order can serve a 1.6 t HVAC install or a 21 t machine lift. Chain slings keep working where webbing degrades — at heat, at edges and in oily environments.
Key Features
- Grade 80 alloy chain, 6 mm to 32 mm diameter, matched Grade 80 hooks and master link

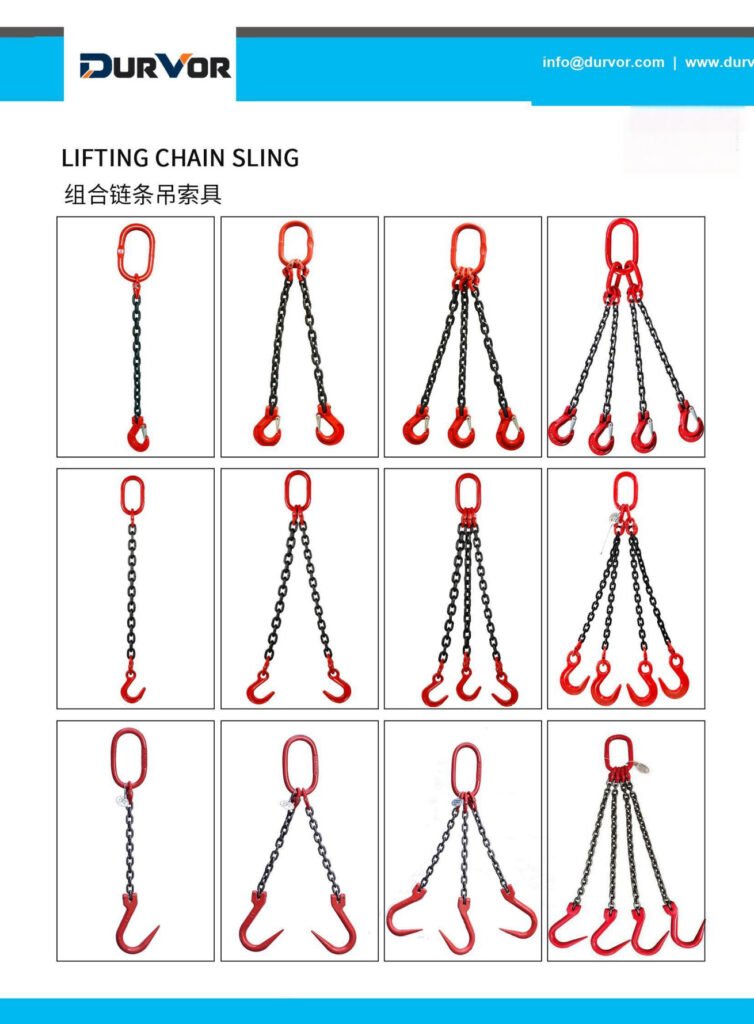

- Single-leg, 2-leg, 3-leg and 4-leg configurations
- Leg length cut to order so the sling angle matches the actual lift geometry
- Master link with grade marking and heat number for full traceability
- Shortener and bolt shackles available for in-field length adjustment
Typical Applications
Steel frame and machinery installation, foundry and machine tool handling, shipyard and port equipment, rigging and theatre loadings, construction site material moves, OEM crane and hoist assembly.
Specifications
| Chain Grade | Grade 80 alloy steel |
|---|---|
| Chain Diameter | 6, 8, 10, 13, 16, 20, 25, 32 mm |
| Hook Grade | Grade 80, with safety latch |
| Master Link | Grade 80, marked with capacity |
| Legs | 1, 2, 3 or 4 leg |
| Capacity Range | 1.6 t to 21 t working load |
| Leg Length | Cut to order |
| Certification | CE certified, ISO 9001 manufacturing |
Specifications, materials, dimensions, applicable standards, packaging and customization options should be confirmed for the selected model and order.
