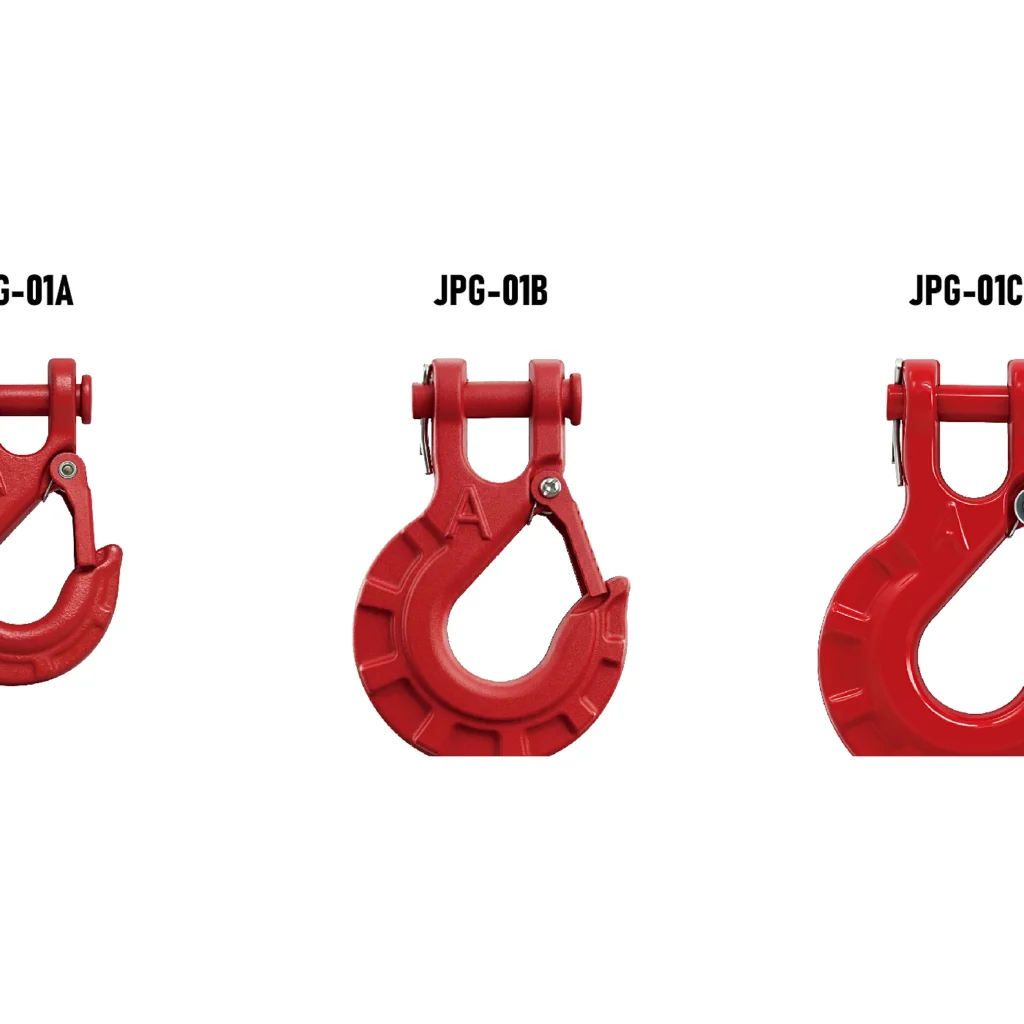

Hot-forged Grade 70 alloy steel recovery hook with an integrated safety latch, suitable for truck tow chains, winch cable and rope. Three size options cover different load requirements, and matte or gloss surface finishes balance durability with appearance.
Specifications
- JPG-01A — 2.3T (4,900lbs) WLL, 5T (11,000lbs) breaking, 1/4″
- JPG-01B — 5T (11,000lbs) WLL, 11T (24,200lbs) breaking, 5/16″
- JPG-01C — 8T (17,600lbs) WLL, 17T (37,400lbs) breaking, 3/8″
Why buyers choose this
- Grade 70 alloy steel for high strength at relatively low weight
- Safety latch fitted as standard to reduce the risk of the hook releasing under load
- High packing density — up to 80 pieces per carton
- Zinc plated and powder coated on the 5/16″ and 3/8″ models for corrosion resistance
Specifications
| Part No. | JPG-01A / JPG-01B / JPG-01C |
|---|---|
| WLL (Safe Working Load) | 2.3T (4,900lbs) / 5T (11,000lbs) / 8T (17,600lbs) |
| Breaking Strength | 5T (11,000lbs) / 11T (24,200lbs) / 17T (37,400lbs) |
| Size | 1/4″ / 5/16″ / 3/8″ |
| Material | G70 Alloy Steel |
| Finish | Powder Coating; Zinc plated & powder coated |
| PCS/CTN | 80 / 40 / 20 pcs per CTN |
| Carton Size | 35 x 21 x 20 cm |
| G.W. / N.W. | 25/24, 21/20, 17/16 kg |
Specifications, materials, dimensions, applicable standards, packaging and customization options should be confirmed for the selected model and order.
