Product Overview
Off-Road Snatch Pulley 4.75t (OSP Series). Forged alloy steel off-road snatch pulleys with a self-locking cam and sealed stainless bearings. Available from 3.25 t to 9.5 t working load, with groove widths matched to common winch rope diameters.
Key Features
- 4.75 t rating matches heavier 10 mm winch ropes and full-size SUVs
- Self-locking cam opens only when the rope is properly seated
- Forged construction resists deformation under high side loads
Typical Applications
Off-road recovery, vehicle towing, winch operations, rigging and lifting, fleet maintenance and OEM programmes.
The OSP series spans four working loads from 3.25 t to 9.5 t. All bodies use the same forged alloy side plates and self-lubricating bearing, so a single mounting pattern fits the full range.
Specifications
| Model No. | OSP Series |
|---|---|
| Material | Forged alloy steel |
| WLL | 4.75 t (10,470 lbs) |
| Breaking Strength | 14.25 t (31,400 lbs) |
| Rope Diameter | 21.5 mm |
| Groove Width | 50 mm |
| Weight | 1.25 kg |
| Certification | CE / EN 13889 |
| Colour | Galvanised Steel |
| Certification | ISO 9001 certified manufacturing |
OSP Series Load Ratings

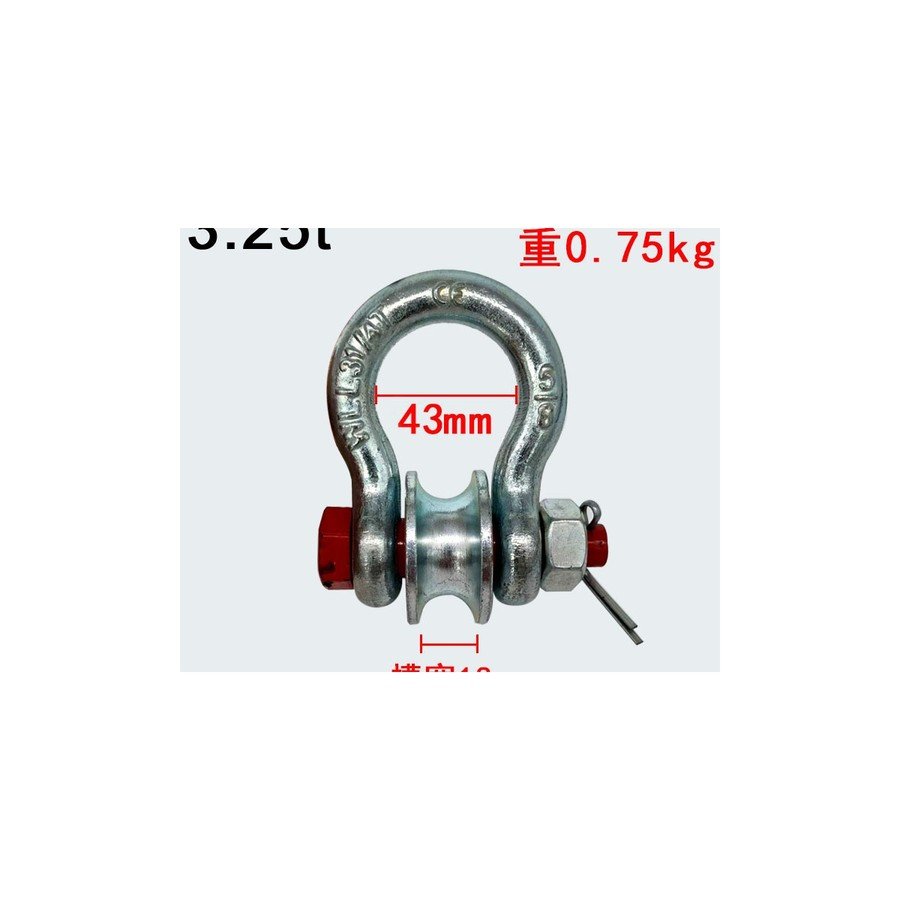

| OSP-325 · 3.25t | 3,250 kg working load · 7,165 lbs |
|---|---|

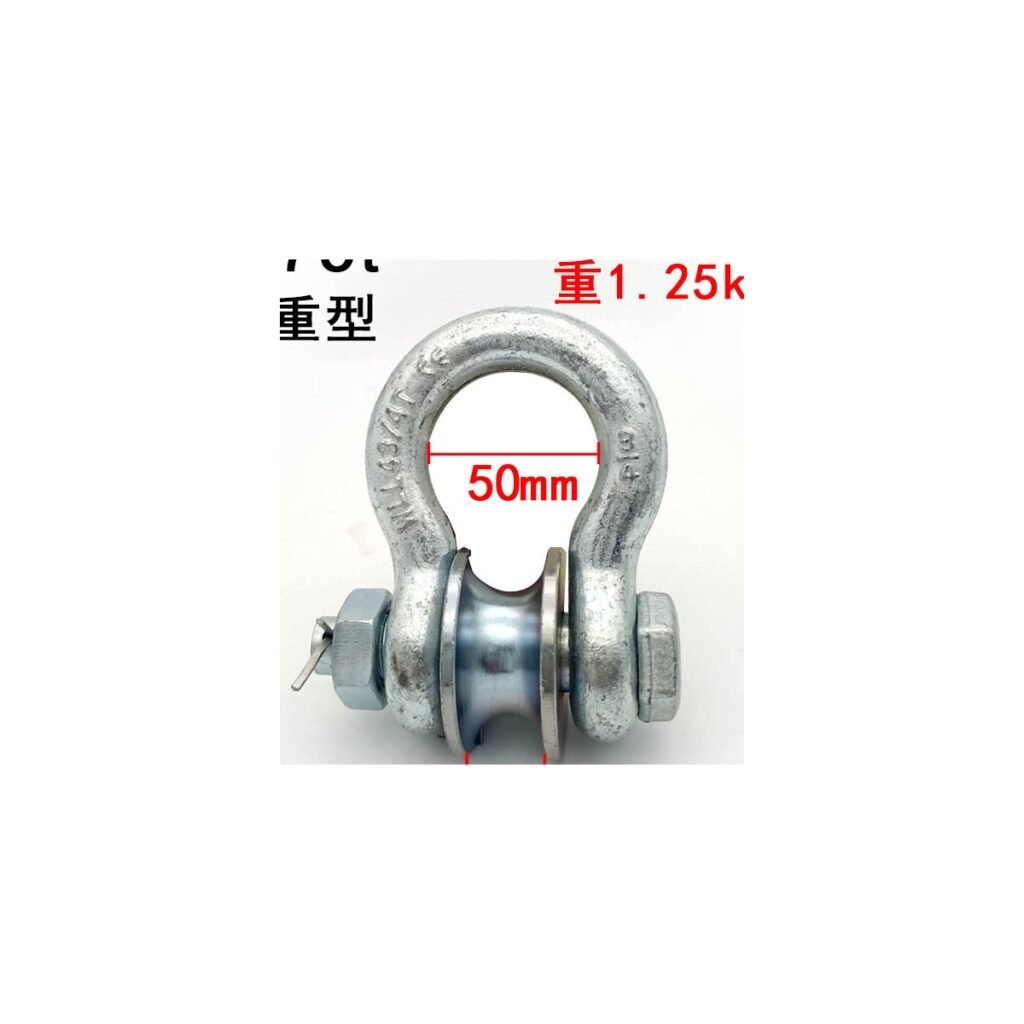

| OSP-475 · 4.75t | 4,750 kg working load · 10,470 lbs |

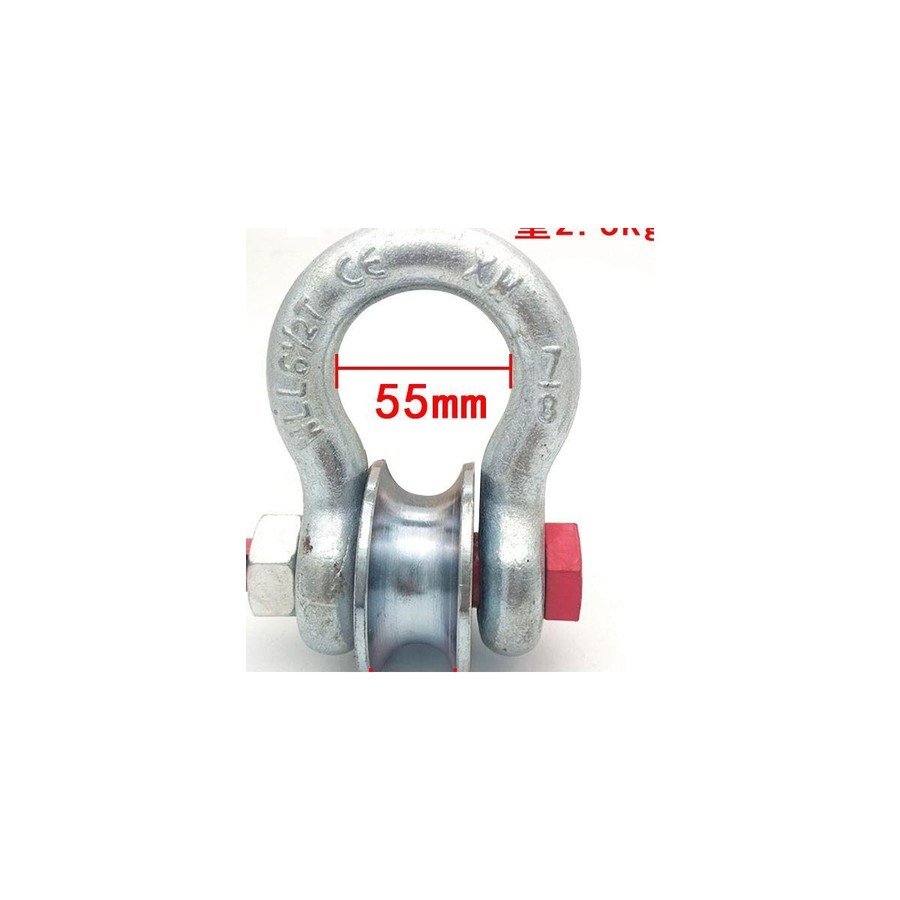

| OSP-650 · 6.5t | 6,500 kg working load · 14,330 lbs |

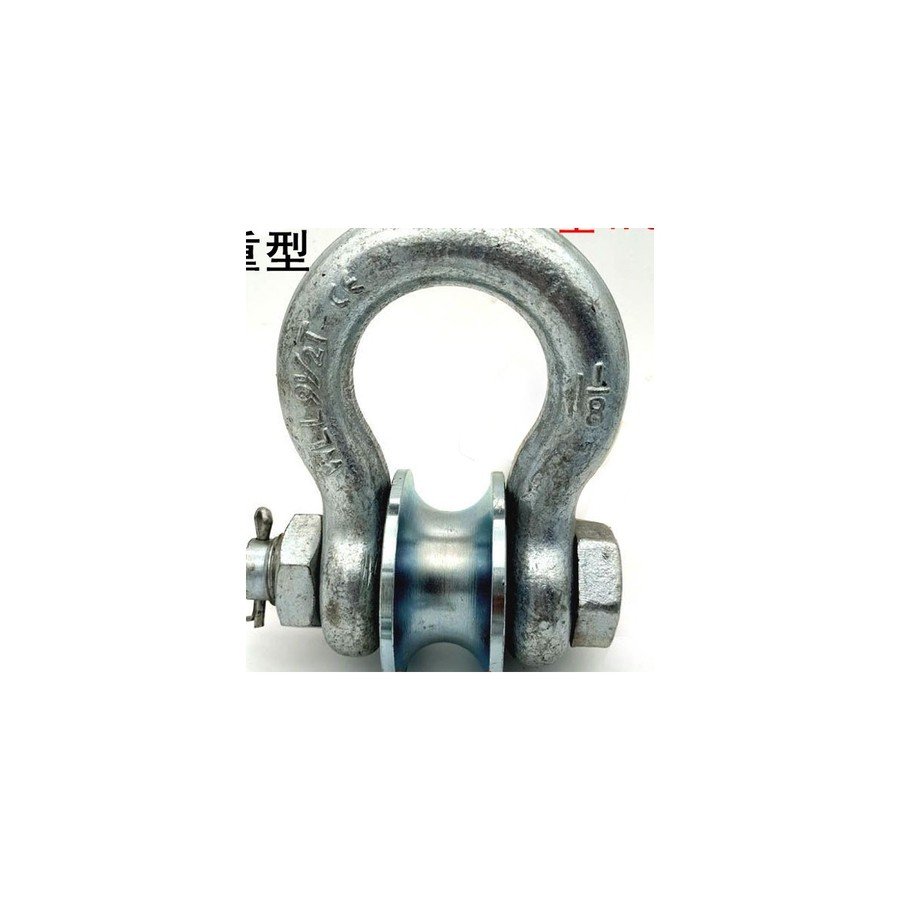

| OSP-950 · 9.5t | 9,500 kg working load · 20,950 lbs |
Specifications, materials, dimensions, applicable standards, packaging and customization options should be confirmed for the selected model and order.
